1. Product Characteristics and Architectural Style
1.1 Structure and Crystalline Phases of Alumina

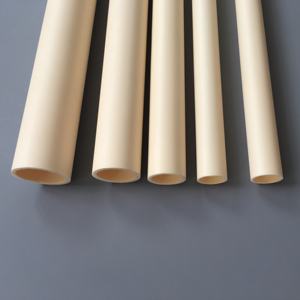

( Alumina Ceramic Tubes)
Alumina (Al ₂ O FIVE) ceramic tubes are mainly made from high-purity aluminum oxide, with purity degrees usually varying from 90% to 99.8%, depending on the desired application.
The dominant crystalline stage in completely thick, high-temperature sintered tubes is α-alumina (diamond), which displays a trigonal crystal framework and extraordinary thermodynamic stability.
This phase change from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina occurs above 1100 ° C and causes a thick, interlocking microstructure that supplies exceptional mechanical strength and chemical resistance.
Higher purity qualities (≥ 99.5%) make the most of hardness, put on resistance, and dielectric performance, while lower-purity formulations may include second phases like mullite or glazed grain limit phases to lower expense or tailor thermal development.
The capability to manage grain dimension, porosity, and stage structure during handling permits engineers to fine-tune alumina tubes for specific useful needs throughout diverse commercial domain names.
1.2 Mechanical, Thermal, and Electric Properties
Alumina ceramic tubes display a special mix of physical residential properties that make them vital sought after engineering environments.
With a Vickers hardness going beyond 1500 HV, they are very immune to abrasion and erosion, exceeding most steels and polymers in wear-prone systems.
Their compressive stamina can reach 2000 MPa, enabling structural use under high mechanical loads, while flexural toughness usually varies from 300 to 500 MPa, relying on thickness and surface finish.
Thermally, alumina preserves stability up to 1700 ° C in oxidizing ambiences, with a reduced coefficient of thermal development (~ 8 ppm/K), contributing to outstanding thermal shock resistance when correctly developed.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate compared to metals or light weight aluminum nitride, it suffices for many high-temperature applications where electric insulation and architectural stability are focused on.
Electrically, alumina is an exceptional insulator with volume resistivity > 10 ¹⁴ Ω · centimeters and high dielectric strength (> 15 kV/mm), making it suitable for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

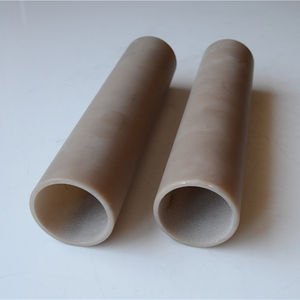

( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Shaping and Developing Methods
The manufacturing of alumina ceramic tubes includes innovative developing approaches tailored to achieve precise measurements, wall surface thickness harmony, and surface quality.
Typical methods include extrusion, isostatic pressing, and slide spreading, each matched to various size varieties and efficiency demands.
Extrusion is extensively used for long, straight tubes with constant cross-sections, where a plasticized alumina paste is forced via a die and cut to size prior to drying out and sintering.
For high-precision or thin-walled tubes, cold isostatic pushing (CIP) applies consistent stress from all directions to portable green bodies, reducing distortion and enhancing density homogeneity.
Slide spreading, entailing the deposition of a colloidal alumina suspension (slip) onto a porous plaster mold and mildew, is excellent for facility or large-diameter geometries with variable wall thickness.
After forming, tubes go through careful drying to stop cracking, complied with by binder fatigue and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional security.
2.2 Ending Up and Quality Assurance
Post-sintering procedures such as centerless grinding, lapping, and brightening are utilized to achieve limited resistances, smooth surface finishes, and specific inner and outer sizes.
Tolerances as limited as ± 0.01 mm are attainable for essential applications in semiconductor handling or logical instrumentation.
Surface area roughness can be minimized to Ra < 0.1 µm, decreasing bit capturing and boosting compatibility with ultra-high vacuum cleaner (UHV) or cleanroom settings.
Non-destructive screening approaches– including ultrasonic inspection, X-ray radiography, and color penetrant testing– make certain structural integrity and lack of splits or gaps.
Dimensional metrology utilizing coordinate determining machines (CMM) or laser scanning verifies conformity with style specifications, particularly for custom or high-volume manufacturing runs.
3. Useful Performance in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
Among one of the most compelling advantages of alumina ceramic tubes is their ability to withstand extreme thermal and chemical problems where steels and polymers fail.
They continue to be dimensionally secure and mechanically durable in continual service at temperatures over 1500 ° C, making them ideal for heating system linings, thermocouple security sheaths, and glowing heating system tubes.
Their inertness to molten steels (e.g., aluminum, zinc, and non-ferrous alloys), molten salts, and numerous acids (other than hydrofluoric and hot phosphoric acid) makes it possible for use in metallurgical and chemical processing devices.
In oxidizing and lowering atmospheres, alumina does not weaken or catalyze unwanted reactions, preserving procedure purity in semiconductor and glass manufacturing.
This chemical inertness additionally stops contamination in high-purity liquid managing systems, consisting of those used in pharmaceutical and food handling sectors.
3.2 Electric Insulation and Plasma Resistance
In electrical and plasma settings, alumina tubes function as shielding barriers that preserve circuit honesty under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lamps, where they consist of ionized gases at temperatures exceeding 1000 ° C while standing up to electrical possibilities of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric windows or gas circulation elements, standing up to ion bombardment and thermal biking without breaking or outgassing.
Their reduced dielectric loss and high arc resistance prevent electric monitoring and breakdown, making certain lengthy service life in switchgear and power transmission elements.
These buildings are essential in keeping process security and equipment reliability in innovative manufacturing and power systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Processing Equipments
Alumina ceramic tubes are important to a wide variety of commercial processes that demand longevity under extreme conditions.
In thermal handling, they act as protective sheaths for thermocouples and heating elements in kilns, furnaces, and warm treatment tools, securing sensitive elements from corrosive environments and mechanical wear.
In fluid handling, they deliver hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock enables rapid home heating and cooling down cycles without failing, a key benefit in cyclic commercial operations.
In glass production, alumina tubes direct liquified glass circulations and support forming devices, withstanding disintegration from viscous, high-temperature thaws.
4.2 Advanced Technologies and Future Assimilation
Beyond traditional commercial uses, alumina tubes are locating brand-new roles in cutting-edge technologies.
In semiconductor manufacture, ultra-pure alumina tubes are made use of in chemical vapor deposition (CVD) activators and ion implantation systems, where particle generation and metal contamination have to be lessened.
In clinical tools, biocompatible alumina tubes serve as protecting parts in medical tools, dental implants, and analysis sensing units.
Study is exploring functionalized alumina tubes with embedded sensing units or conductive traces for wise architectural tracking in aerospace and power systems.
Additive production (3D printing) of alumina is becoming a method to generate complex tube geometries with inner networks or rated compositions, allowing next-generation warmth exchangers and microreactors.
As markets press toward greater effectiveness, cleaner procedures, and higher reliability, alumina ceramic tubes remain to evolve as enabling parts in the facilities of modern innovation.
In recap, alumina ceramic tubes stand for a fully grown yet dynamically progressing class of engineered products, combining outstanding thermal, mechanical, and electric efficiency in a single not natural channel.
Their convenience throughout extreme atmospheres ensures their continued importance in both established commercial systems and emerging modern applications.
