1. Material Fundamentals and Crystallographic Residence
1.1 Stage Composition and Polymorphic Actions

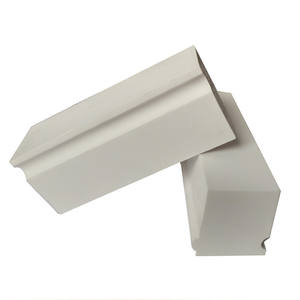

(Alumina Ceramic Blocks)
Alumina (Al ₂ O ₃), specifically in its α-phase type, is one of the most extensively used technical porcelains because of its outstanding equilibrium of mechanical toughness, chemical inertness, and thermal stability.
While aluminum oxide exists in numerous metastable phases (γ, δ, θ, κ), α-alumina is the thermodynamically secure crystalline framework at heats, identified by a thick hexagonal close-packed (HCP) arrangement of oxygen ions with aluminum cations inhabiting two-thirds of the octahedral interstitial websites.
This bought framework, called corundum, confers high lattice energy and solid ionic-covalent bonding, causing a melting factor of about 2054 ° C and resistance to stage makeover under severe thermal problems.
The change from transitional aluminas to α-Al ₂ O two normally happens above 1100 ° C and is come with by substantial quantity shrinking and loss of surface, making phase control essential during sintering.
High-purity α-alumina blocks (> 99.5% Al Two O TWO) display remarkable efficiency in severe settings, while lower-grade structures (90– 95%) may consist of secondary phases such as mullite or glazed grain boundary stages for economical applications.
1.2 Microstructure and Mechanical Stability
The efficiency of alumina ceramic blocks is greatly affected by microstructural functions including grain dimension, porosity, and grain boundary communication.
Fine-grained microstructures (grain dimension < 5 µm) normally offer higher flexural toughness (approximately 400 MPa) and enhanced fracture durability contrasted to grainy counterparts, as smaller sized grains restrain crack propagation.
Porosity, also at low degrees (1– 5%), dramatically minimizes mechanical toughness and thermal conductivity, necessitating complete densification with pressure-assisted sintering methods such as hot pressing or warm isostatic pressing (HIP).
Additives like MgO are commonly presented in trace quantities (≈ 0.1 wt%) to inhibit unusual grain development during sintering, guaranteeing consistent microstructure and dimensional security.
The resulting ceramic blocks display high firmness (≈ 1800 HV), superb wear resistance, and low creep prices at elevated temperature levels, making them suitable for load-bearing and abrasive settings.
2. Production and Handling Techniques

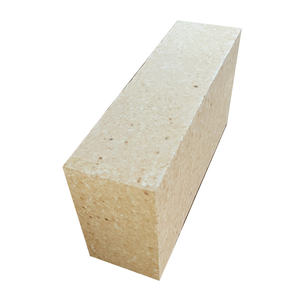

( Alumina Ceramic Blocks)
2.1 Powder Prep Work and Shaping Techniques
The manufacturing of alumina ceramic blocks starts with high-purity alumina powders stemmed from calcined bauxite via the Bayer process or manufactured through rainfall or sol-gel routes for greater pureness.
Powders are crushed to attain narrow bit size distribution, enhancing packing density and sinterability.
Forming right into near-net geometries is achieved with various developing techniques: uniaxial pushing for easy blocks, isostatic pushing for uniform thickness in intricate shapes, extrusion for lengthy areas, and slip casting for detailed or large elements.
Each technique affects environment-friendly body density and homogeneity, which straight effect final residential or commercial properties after sintering.
For high-performance applications, advanced creating such as tape spreading or gel-casting may be utilized to accomplish superior dimensional control and microstructural harmony.
2.2 Sintering and Post-Processing
Sintering in air at temperature levels in between 1600 ° C and 1750 ° C enables diffusion-driven densification, where bit necks expand and pores reduce, causing a completely dense ceramic body.
Environment control and precise thermal accounts are vital to protect against bloating, bending, or differential shrinking.
Post-sintering procedures consist of ruby grinding, lapping, and polishing to accomplish tight resistances and smooth surface area finishes required in securing, sliding, or optical applications.
Laser cutting and waterjet machining allow exact customization of block geometry without causing thermal stress and anxiety.
Surface area treatments such as alumina finish or plasma splashing can better boost wear or rust resistance in specific service conditions.
3. Useful Residences and Efficiency Metrics
3.1 Thermal and Electric Behavior
Alumina ceramic blocks exhibit modest thermal conductivity (20– 35 W/(m · K)), dramatically more than polymers and glasses, enabling efficient warmth dissipation in electronic and thermal administration systems.
They keep architectural honesty approximately 1600 ° C in oxidizing environments, with reduced thermal expansion (≈ 8 ppm/K), adding to outstanding thermal shock resistance when properly created.
Their high electrical resistivity (> 10 ¹⁴ Ω · cm) and dielectric toughness (> 15 kV/mm) make them perfect electrical insulators in high-voltage settings, consisting of power transmission, switchgear, and vacuum cleaner systems.
Dielectric consistent (εᵣ ≈ 9– 10) stays secure over a large regularity range, supporting use in RF and microwave applications.
These residential properties make it possible for alumina obstructs to function dependably in atmospheres where natural materials would certainly degrade or fail.
3.2 Chemical and Environmental Durability
Among one of the most beneficial features of alumina blocks is their phenomenal resistance to chemical strike.
They are very inert to acids (except hydrofluoric and hot phosphoric acids), alkalis (with some solubility in strong caustics at elevated temperature levels), and molten salts, making them ideal for chemical handling, semiconductor fabrication, and contamination control tools.
Their non-wetting actions with several molten metals and slags allows usage in crucibles, thermocouple sheaths, and heating system cellular linings.
Additionally, alumina is non-toxic, biocompatible, and radiation-resistant, expanding its energy into medical implants, nuclear securing, and aerospace components.
Minimal outgassing in vacuum cleaner atmospheres additionally qualifies it for ultra-high vacuum (UHV) systems in research study and semiconductor manufacturing.
4. Industrial Applications and Technological Integration
4.1 Architectural and Wear-Resistant Elements
Alumina ceramic blocks act as essential wear components in sectors ranging from mining to paper manufacturing.
They are made use of as linings in chutes, receptacles, and cyclones to stand up to abrasion from slurries, powders, and granular products, significantly expanding life span contrasted to steel.
In mechanical seals and bearings, alumina blocks supply low friction, high firmness, and rust resistance, lowering upkeep and downtime.
Custom-shaped blocks are incorporated into cutting tools, dies, and nozzles where dimensional security and edge retention are paramount.
Their lightweight nature (thickness ≈ 3.9 g/cm THREE) additionally adds to energy cost savings in moving parts.
4.2 Advanced Engineering and Arising Makes Use Of
Past traditional functions, alumina blocks are increasingly employed in innovative technical systems.
In electronics, they function as insulating substrates, heat sinks, and laser tooth cavity elements as a result of their thermal and dielectric properties.
In power systems, they act as solid oxide gas cell (SOFC) parts, battery separators, and blend reactor plasma-facing products.
Additive manufacturing of alumina through binder jetting or stereolithography is emerging, enabling complicated geometries formerly unattainable with conventional creating.
Crossbreed structures incorporating alumina with steels or polymers via brazing or co-firing are being created for multifunctional systems in aerospace and defense.
As product science advancements, alumina ceramic blocks continue to progress from easy architectural elements right into energetic elements in high-performance, sustainable engineering remedies.
In recap, alumina ceramic blocks stand for a fundamental course of sophisticated porcelains, combining robust mechanical performance with exceptional chemical and thermal stability.
Their flexibility across commercial, digital, and clinical domains highlights their enduring worth in contemporary engineering and innovation development.
