1. Fundamental Principles and Process Categories
1.1 Meaning and Core Device

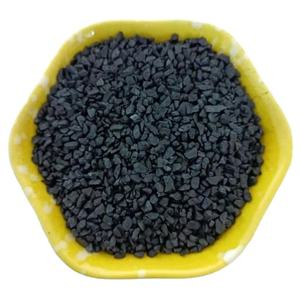

(3d printing alloy powder)
Metal 3D printing, also known as steel additive manufacturing (AM), is a layer-by-layer construction technique that develops three-dimensional metallic elements directly from digital versions making use of powdered or wire feedstock.
Unlike subtractive approaches such as milling or turning, which remove material to achieve shape, metal AM adds product only where needed, making it possible for unmatched geometric complexity with very little waste.
The process begins with a 3D CAD design sliced into slim straight layers (normally 20– 100 µm thick). A high-energy source– laser or electron light beam– precisely melts or integrates metal fragments according to each layer’s cross-section, which solidifies upon cooling down to form a dense solid.
This cycle repeats until the full part is built, often within an inert ambience (argon or nitrogen) to avoid oxidation of responsive alloys like titanium or aluminum.
The resulting microstructure, mechanical properties, and surface coating are controlled by thermal history, scan technique, and product attributes, requiring exact control of process parameters.
1.2 Significant Steel AM Technologies
Both dominant powder-bed fusion (PBF) technologies are Discerning Laser Melting (SLM) and Electron Beam Melting (EBM).
SLM makes use of a high-power fiber laser (usually 200– 1000 W) to completely melt steel powder in an argon-filled chamber, generating near-full thickness (> 99.5%) get rid of fine feature resolution and smooth surface areas.
EBM utilizes a high-voltage electron beam of light in a vacuum cleaner setting, running at higher develop temperature levels (600– 1000 ° C), which reduces residual tension and enables crack-resistant handling of fragile alloys like Ti-6Al-4V or Inconel 718.
Beyond PBF, Directed Energy Deposition (DED)– consisting of Laser Metal Deposition (LMD) and Cord Arc Ingredient Manufacturing (WAAM)– feeds metal powder or wire into a liquified pool produced by a laser, plasma, or electrical arc, suitable for large-scale fixings or near-net-shape parts.
Binder Jetting, however less mature for steels, includes depositing a liquid binding agent onto metal powder layers, complied with by sintering in a furnace; it offers high speed however reduced thickness and dimensional precision.
Each modern technology stabilizes compromises in resolution, develop rate, material compatibility, and post-processing demands, leading selection based upon application needs.
2. Materials and Metallurgical Considerations
2.1 Common Alloys and Their Applications
Steel 3D printing supports a vast array of engineering alloys, consisting of stainless steels (e.g., 316L, 17-4PH), tool steels (H13, Maraging steel), nickel-based superalloys (Inconel 625, 718), titanium alloys (Ti-6Al-4V, CP-Ti), aluminum (AlSi10Mg, Sc-modified Al), and cobalt-chrome (CoCrMo).
Stainless-steels provide deterioration resistance and moderate stamina for fluidic manifolds and clinical tools.

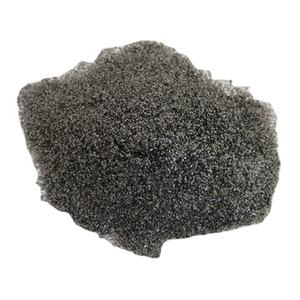

(3d printing alloy powder)
Nickel superalloys master high-temperature atmospheres such as generator blades and rocket nozzles because of their creep resistance and oxidation stability.
Titanium alloys incorporate high strength-to-density ratios with biocompatibility, making them excellent for aerospace brackets and orthopedic implants.
Light weight aluminum alloys enable light-weight structural parts in vehicle and drone applications, though their high reflectivity and thermal conductivity present challenges for laser absorption and thaw pool security.
Material growth proceeds with high-entropy alloys (HEAs) and functionally graded make-ups that change residential properties within a single part.
2.2 Microstructure and Post-Processing Requirements
The rapid heating and cooling cycles in steel AM generate special microstructures– typically great mobile dendrites or columnar grains straightened with heat circulation– that differ considerably from cast or wrought counterparts.
While this can enhance stamina through grain refinement, it may additionally present anisotropy, porosity, or residual anxieties that endanger fatigue performance.
Consequently, almost all metal AM parts call for post-processing: stress alleviation annealing to reduce distortion, warm isostatic pressing (HIP) to shut inner pores, machining for crucial resistances, and surface area ending up (e.g., electropolishing, shot peening) to boost fatigue life.
Warm therapies are customized to alloy systems– for instance, service aging for 17-4PH to attain rainfall hardening, or beta annealing for Ti-6Al-4V to optimize ductility.
Quality control depends on non-destructive testing (NDT) such as X-ray calculated tomography (CT) and ultrasonic inspection to detect internal flaws invisible to the eye.
3. Layout Freedom and Industrial Influence
3.1 Geometric Advancement and Useful Integration
Metal 3D printing unlocks layout paradigms impossible with conventional manufacturing, such as internal conformal cooling networks in injection molds, latticework frameworks for weight decrease, and topology-optimized load paths that lessen material usage.
Components that once needed assembly from loads of parts can now be published as monolithic units, decreasing joints, bolts, and potential failing points.
This practical combination improves reliability in aerospace and medical devices while cutting supply chain intricacy and inventory costs.
Generative layout formulas, coupled with simulation-driven optimization, automatically produce natural shapes that fulfill performance targets under real-world loads, pressing the boundaries of performance.
Customization at range ends up being practical– oral crowns, patient-specific implants, and bespoke aerospace installations can be produced economically without retooling.
3.2 Sector-Specific Fostering and Economic Value
Aerospace leads adoption, with companies like GE Aeronautics printing gas nozzles for LEAP engines– settling 20 components into one, decreasing weight by 25%, and enhancing resilience fivefold.
Clinical gadget manufacturers take advantage of AM for permeable hip stems that motivate bone ingrowth and cranial plates matching person anatomy from CT scans.
Automotive companies use metal AM for fast prototyping, lightweight brackets, and high-performance racing parts where performance outweighs cost.
Tooling sectors gain from conformally cooled mold and mildews that reduced cycle times by as much as 70%, enhancing efficiency in mass production.
While maker costs remain high (200k– 2M), declining rates, boosted throughput, and licensed material databases are expanding availability to mid-sized ventures and solution bureaus.
4. Obstacles and Future Instructions
4.1 Technical and Qualification Barriers
In spite of progression, steel AM deals with hurdles in repeatability, qualification, and standardization.
Minor variations in powder chemistry, dampness content, or laser emphasis can modify mechanical buildings, requiring rigorous procedure control and in-situ monitoring (e.g., melt swimming pool cams, acoustic sensing units).
Accreditation for safety-critical applications– especially in aviation and nuclear markets– requires comprehensive statistical validation under frameworks like ASTM F42, ISO/ASTM 52900, and NADCAP, which is lengthy and costly.
Powder reuse protocols, contamination risks, and lack of universal material specifications better complicate industrial scaling.
Initiatives are underway to establish digital doubles that link process specifications to part efficiency, making it possible for anticipating quality assurance and traceability.
4.2 Arising Patterns and Next-Generation Systems
Future advancements consist of multi-laser systems (4– 12 lasers) that considerably increase construct prices, hybrid devices combining AM with CNC machining in one system, and in-situ alloying for custom-made structures.
Artificial intelligence is being integrated for real-time problem detection and flexible criterion modification during printing.
Sustainable campaigns concentrate on closed-loop powder recycling, energy-efficient light beam resources, and life process evaluations to quantify ecological benefits over conventional approaches.
Research study right into ultrafast lasers, cool spray AM, and magnetic field-assisted printing may get rid of existing limitations in reflectivity, residual stress, and grain positioning control.
As these innovations develop, metal 3D printing will transition from a particular niche prototyping tool to a mainstream manufacturing method– improving exactly how high-value metal components are created, made, and released across industries.
