1. Structural Attributes and Synthesis of Round Silica
1.1 Morphological Interpretation and Crystallinity

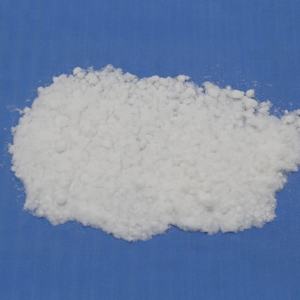

(Spherical Silica)
Spherical silica refers to silicon dioxide (SiO ₂) fragments crafted with an extremely uniform, near-perfect round shape, identifying them from conventional irregular or angular silica powders derived from all-natural resources.
These bits can be amorphous or crystalline, though the amorphous type dominates commercial applications due to its premium chemical security, lower sintering temperature level, and absence of stage transitions that could cause microcracking.
The round morphology is not naturally common; it should be artificially accomplished through controlled processes that regulate nucleation, development, and surface energy minimization.
Unlike crushed quartz or integrated silica, which show rugged sides and wide dimension circulations, spherical silica functions smooth surface areas, high packaging density, and isotropic behavior under mechanical tension, making it optimal for precision applications.
The fragment diameter normally varies from tens of nanometers to a number of micrometers, with tight control over size circulation allowing foreseeable performance in composite systems.
1.2 Managed Synthesis Pathways
The main technique for creating spherical silica is the Stöber procedure, a sol-gel method created in the 1960s that includes the hydrolysis and condensation of silicon alkoxides– most generally tetraethyl orthosilicate (TEOS)– in an alcoholic option with ammonia as a stimulant.
By adjusting parameters such as reactant focus, water-to-alkoxide ratio, pH, temperature level, and response time, researchers can precisely tune fragment dimension, monodispersity, and surface area chemistry.
This technique returns very uniform, non-agglomerated spheres with superb batch-to-batch reproducibility, necessary for high-tech production.
Alternative methods consist of fire spheroidization, where irregular silica particles are thawed and improved into balls using high-temperature plasma or fire treatment, and emulsion-based techniques that enable encapsulation or core-shell structuring.
For large commercial manufacturing, sodium silicate-based precipitation paths are additionally employed, using economical scalability while maintaining appropriate sphericity and pureness.
Surface area functionalization during or after synthesis– such as grafting with silanes– can introduce organic teams (e.g., amino, epoxy, or vinyl) to enhance compatibility with polymer matrices or make it possible for bioconjugation.
( Spherical Silica)
2. Useful Features and Efficiency Advantages
2.1 Flowability, Loading Thickness, and Rheological Habits
Among the most considerable benefits of spherical silica is its exceptional flowability contrasted to angular counterparts, a home important in powder handling, injection molding, and additive production.
The absence of sharp sides minimizes interparticle rubbing, allowing dense, homogeneous packing with very little void space, which boosts the mechanical integrity and thermal conductivity of final compounds.
In electronic product packaging, high packing thickness straight equates to lower material web content in encapsulants, enhancing thermal stability and lowering coefficient of thermal growth (CTE).
Additionally, spherical particles impart beneficial rheological homes to suspensions and pastes, reducing viscosity and protecting against shear thickening, which makes certain smooth giving and uniform layer in semiconductor fabrication.
This regulated flow behavior is essential in applications such as flip-chip underfill, where accurate product positioning and void-free dental filling are needed.
2.2 Mechanical and Thermal Security
Round silica displays superb mechanical strength and flexible modulus, adding to the support of polymer matrices without generating stress concentration at sharp corners.
When included into epoxy resins or silicones, it improves hardness, put on resistance, and dimensional security under thermal cycling.
Its low thermal development coefficient (~ 0.5 × 10 ⁻⁶/ K) closely matches that of silicon wafers and published motherboard, reducing thermal inequality tensions in microelectronic gadgets.
In addition, round silica preserves structural stability at elevated temperatures (as much as ~ 1000 ° C in inert atmospheres), making it appropriate for high-reliability applications in aerospace and automotive electronic devices.
The combination of thermal stability and electrical insulation better boosts its energy in power modules and LED packaging.
3. Applications in Electronics and Semiconductor Sector
3.1 Role in Digital Packaging and Encapsulation
Round silica is a cornerstone material in the semiconductor sector, mainly used as a filler in epoxy molding compounds (EMCs) for chip encapsulation.
Replacing conventional irregular fillers with round ones has revolutionized packaging innovation by making it possible for higher filler loading (> 80 wt%), enhanced mold circulation, and lowered wire move during transfer molding.
This improvement sustains the miniaturization of incorporated circuits and the growth of innovative plans such as system-in-package (SiP) and fan-out wafer-level packaging (FOWLP).
The smooth surface area of round fragments likewise decreases abrasion of fine gold or copper bonding wires, improving device integrity and return.
In addition, their isotropic nature ensures uniform stress circulation, lowering the threat of delamination and fracturing throughout thermal cycling.
3.2 Usage in Sprucing Up and Planarization Procedures
In chemical mechanical planarization (CMP), spherical silica nanoparticles serve as unpleasant agents in slurries developed to polish silicon wafers, optical lenses, and magnetic storage space media.
Their consistent size and shape guarantee consistent product elimination prices and marginal surface problems such as scrapes or pits.
Surface-modified spherical silica can be customized for specific pH environments and reactivity, improving selectivity between different materials on a wafer surface area.
This precision enables the fabrication of multilayered semiconductor frameworks with nanometer-scale flatness, a prerequisite for sophisticated lithography and gadget assimilation.
4. Emerging and Cross-Disciplinary Applications
4.1 Biomedical and Diagnostic Utilizes
Past electronic devices, spherical silica nanoparticles are significantly used in biomedicine due to their biocompatibility, simplicity of functionalization, and tunable porosity.
They serve as medicine distribution carriers, where healing representatives are loaded right into mesoporous frameworks and released in action to stimuli such as pH or enzymes.
In diagnostics, fluorescently identified silica balls work as stable, safe probes for imaging and biosensing, surpassing quantum dots in certain organic atmospheres.
Their surface can be conjugated with antibodies, peptides, or DNA for targeted detection of microorganisms or cancer cells biomarkers.
4.2 Additive Manufacturing and Composite Products
In 3D printing, specifically in binder jetting and stereolithography, spherical silica powders enhance powder bed density and layer harmony, bring about higher resolution and mechanical strength in published ceramics.
As an enhancing stage in steel matrix and polymer matrix composites, it enhances rigidity, thermal monitoring, and use resistance without compromising processability.
Research study is likewise checking out hybrid particles– core-shell frameworks with silica shells over magnetic or plasmonic cores– for multifunctional products in sensing and power storage.
In conclusion, round silica exhibits exactly how morphological control at the micro- and nanoscale can transform a common product right into a high-performance enabler across varied modern technologies.
From securing integrated circuits to progressing clinical diagnostics, its unique mix of physical, chemical, and rheological residential or commercial properties remains to drive advancement in scientific research and engineering.
