1. Composition and Architectural Characteristics of Fused Quartz
1.1 Amorphous Network and Thermal Security

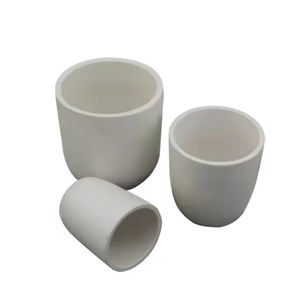

(Quartz Crucibles)
Quartz crucibles are high-temperature containers made from fused silica, an artificial type of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperature levels surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under fast temperature level changes.
This disordered atomic structure protects against bosom along crystallographic airplanes, making fused silica less susceptible to breaking during thermal biking compared to polycrystalline porcelains.
The product shows a low coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst engineering materials, enabling it to hold up against severe thermal slopes without fracturing– an essential residential property in semiconductor and solar cell production.
Fused silica additionally preserves outstanding chemical inertness against a lot of acids, liquified metals, and slags, although it can be gradually engraved by hydrofluoric acid and hot phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending on purity and OH material) enables continual procedure at raised temperatures needed for crystal growth and metal refining processes.
1.2 Pureness Grading and Trace Element Control
The performance of quartz crucibles is very based on chemical pureness, especially the concentration of metallic impurities such as iron, sodium, potassium, aluminum, and titanium.
Even trace amounts (parts per million degree) of these impurities can move right into liquified silicon during crystal growth, breaking down the electrical homes of the resulting semiconductor material.
High-purity qualities used in electronics manufacturing usually consist of over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and shift metals listed below 1 ppm.
Pollutants originate from raw quartz feedstock or handling devices and are decreased with careful selection of mineral resources and purification techniques like acid leaching and flotation.
Furthermore, the hydroxyl (OH) content in fused silica influences its thermomechanical behavior; high-OH types offer much better UV transmission however reduced thermal security, while low-OH variants are liked for high-temperature applications due to reduced bubble development.

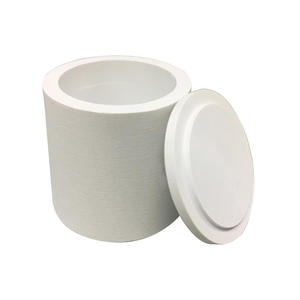

( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Style
2.1 Electrofusion and Creating Methods
Quartz crucibles are mainly generated by means of electrofusion, a process in which high-purity quartz powder is fed into a rotating graphite mold within an electric arc heating system.
An electrical arc generated in between carbon electrodes melts the quartz bits, which solidify layer by layer to develop a seamless, thick crucible shape.
This approach creates a fine-grained, homogeneous microstructure with minimal bubbles and striae, essential for uniform heat distribution and mechanical honesty.
Alternative techniques such as plasma fusion and flame combination are made use of for specialized applications requiring ultra-low contamination or details wall density accounts.
After casting, the crucibles undertake controlled air conditioning (annealing) to relieve inner stress and anxieties and protect against spontaneous fracturing during service.
Surface ending up, consisting of grinding and polishing, guarantees dimensional precision and reduces nucleation sites for undesirable crystallization throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A specifying feature of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the crafted inner layer structure.
Throughout manufacturing, the internal surface area is often dealt with to advertise the formation of a thin, regulated layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first home heating.
This cristobalite layer acts as a diffusion obstacle, reducing straight communication in between liquified silicon and the underlying merged silica, thereby minimizing oxygen and metal contamination.
Furthermore, the presence of this crystalline phase boosts opacity, enhancing infrared radiation absorption and advertising even more uniform temperature circulation within the melt.
Crucible developers very carefully balance the thickness and connection of this layer to stay clear of spalling or cracking because of volume changes throughout phase changes.
3. Functional Performance in High-Temperature Applications
3.1 Role in Silicon Crystal Growth Processes
Quartz crucibles are vital in the production of monocrystalline and multicrystalline silicon, functioning as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into molten silicon held in a quartz crucible and slowly drew upward while rotating, allowing single-crystal ingots to develop.
Although the crucible does not straight get in touch with the expanding crystal, interactions in between liquified silicon and SiO ₂ wall surfaces bring about oxygen dissolution right into the melt, which can affect service provider life time and mechanical strength in finished wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles make it possible for the controlled air conditioning of thousands of kilos of liquified silicon into block-shaped ingots.
Right here, finishes such as silicon nitride (Si four N FOUR) are related to the internal surface area to stop bond and assist in easy launch of the strengthened silicon block after cooling down.
3.2 Degradation Systems and Service Life Limitations
Despite their effectiveness, quartz crucibles weaken throughout repeated high-temperature cycles due to a number of interrelated mechanisms.
Thick flow or contortion occurs at long term exposure over 1400 ° C, causing wall thinning and loss of geometric honesty.
Re-crystallization of fused silica into cristobalite generates inner stress and anxieties because of volume growth, possibly causing fractures or spallation that infect the thaw.
Chemical disintegration emerges from decrease responses between molten silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), producing unpredictable silicon monoxide that escapes and deteriorates the crucible wall.
Bubble formation, driven by trapped gases or OH teams, further jeopardizes architectural strength and thermal conductivity.
These degradation paths restrict the variety of reuse cycles and demand specific process control to make best use of crucible life expectancy and product return.
4. Emerging Technologies and Technical Adaptations
4.1 Coatings and Compound Alterations
To boost performance and toughness, progressed quartz crucibles include practical coverings and composite frameworks.
Silicon-based anti-sticking layers and drugged silica finishings improve release attributes and lower oxygen outgassing throughout melting.
Some manufacturers integrate zirconia (ZrO ₂) fragments right into the crucible wall to raise mechanical strength and resistance to devitrification.
Research study is ongoing into completely clear or gradient-structured crucibles developed to enhance induction heat transfer in next-generation solar heater styles.
4.2 Sustainability and Recycling Challenges
With enhancing need from the semiconductor and solar sectors, sustainable use quartz crucibles has become a priority.
Used crucibles polluted with silicon deposit are difficult to recycle as a result of cross-contamination dangers, causing substantial waste generation.
Efforts concentrate on developing multiple-use crucible linings, boosted cleaning methods, and closed-loop recycling systems to recoup high-purity silica for second applications.
As gadget performances require ever-higher material purity, the role of quartz crucibles will certainly remain to progress through innovation in products science and procedure design.
In summary, quartz crucibles represent an important interface between raw materials and high-performance digital items.
Their distinct combination of pureness, thermal durability, and architectural layout makes it possible for the construction of silicon-based innovations that power modern computing and renewable energy systems.
