Intro to Aluminum Nitride Ceramics
Aluminum nitride (AlN) is a high-performance ceramic material that has gotten prevalent acknowledgment for its extraordinary thermal conductivity, electrical insulation, and mechanical stability at raised temperatures. With a hexagonal wurtzite crystal structure, AlN exhibits an unique combination of homes that make it the most perfect substrate material for applications in electronic devices, optoelectronics, power components, and high-temperature settings. Its ability to effectively dissipate warm while keeping excellent dielectric stamina positions AlN as a superior alternative to conventional ceramic substrates such as alumina and beryllium oxide. This article explores the basic features of aluminum nitride ceramics, explores construction techniques, and highlights its vital functions across innovative technological domain names.

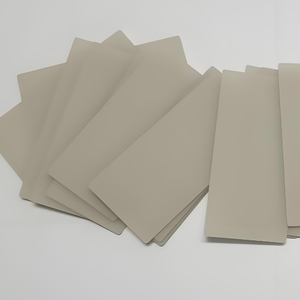

(Aluminum Nitride Ceramics)
Crystal Structure and Basic Residence
The performance of light weight aluminum nitride as a substrate material is largely determined by its crystalline framework and innate physical buildings. AlN embraces a wurtzite-type latticework composed of alternating aluminum and nitrogen atoms, which adds to its high thermal conductivity– commonly going beyond 180 W/(m · K), with some high-purity samples achieving over 320 W/(m · K). This worth dramatically exceeds those of other extensively utilized ceramic products, including alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN has a vast bandgap of around 6.2 eV, causing exceptional electric insulation buildings also at high temperatures. It also demonstrates reduced thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which carefully matches that of silicon and gallium arsenide, making it an optimal suit for semiconductor device packaging. Furthermore, AlN exhibits high chemical inertness and resistance to thaw metals, boosting its viability for severe settings. These combined characteristics develop AlN as a leading prospect for high-power electronic substratums and thermally managed systems.
Construction and Sintering Technologies
Producing top quality light weight aluminum nitride porcelains requires specific powder synthesis and sintering techniques to attain dense microstructures with marginal pollutants. Due to its covalent bonding nature, AlN does not quickly densify with standard pressureless sintering. As a result, sintering aids such as yttrium oxide (Y ₂ O TWO), calcium oxide (CaO), or uncommon planet aspects are typically included in advertise liquid-phase sintering and boost grain boundary diffusion.
The manufacture process usually starts with the carbothermal decrease of aluminum oxide in a nitrogen environment to manufacture AlN powders. These powders are then milled, shaped by means of methods like tape casting or injection molding, and sintered at temperature levels between 1700 ° C and 1900 ° C under a nitrogen-rich ambience. Hot pushing or trigger plasma sintering (SPS) can additionally boost density and thermal conductivity by reducing porosity and promoting grain placement. Advanced additive manufacturing techniques are additionally being explored to make complex-shaped AlN elements with tailored thermal administration capabilities.
Application in Digital Product Packaging and Power Modules
One of the most prominent uses light weight aluminum nitride porcelains remains in electronic packaging, especially for high-power tools such as shielded gate bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities raise in modern electronics, efficient warm dissipation becomes critical to make sure integrity and longevity. AlN substrates supply an optimal solution by combining high thermal conductivity with outstanding electric isolation, preventing brief circuits and thermal runaway conditions.
Additionally, AlN-based direct bonded copper (DBC) and energetic metal brazed (AMB) substratums are significantly employed in power component designs for electric vehicles, renewable resource inverters, and industrial electric motor drives. Compared to standard alumina or silicon nitride substratums, AlN uses quicker heat transfer and much better compatibility with silicon chip coefficients of thermal development, thereby minimizing mechanical tension and enhancing general system efficiency. Continuous research intends to enhance the bonding strength and metallization methods on AlN surfaces to more expand its application scope.
Use in Optoelectronic and High-Temperature Gadget
Beyond electronic product packaging, light weight aluminum nitride ceramics play a vital duty in optoelectronic and high-temperature applications because of their openness to ultraviolet (UV) radiation and thermal stability. AlN is commonly utilized as a substratum for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications calling for sanitation, picking up, and optical interaction. Its wide bandgap and reduced absorption coefficient in the UV array make it an ideal prospect for sustaining light weight aluminum gallium nitride (AlGaN)-based heterostructures.
Furthermore, AlN’s ability to operate reliably at temperatures surpassing 1000 ° C makes it suitable for usage in sensing units, thermoelectric generators, and components subjected to severe thermal loads. In aerospace and protection fields, AlN-based sensor plans are utilized in jet engine surveillance systems and high-temperature control units where standard products would fail. Constant developments in thin-film deposition and epitaxial growth strategies are expanding the capacity of AlN in next-generation optoelectronic and high-temperature integrated systems.
( Aluminum Nitride Ceramics)
Ecological Stability and Long-Term Reliability
An essential consideration for any kind of substrate material is its lasting dependability under operational stresses. Aluminum nitride shows exceptional ecological stability compared to lots of other porcelains. It is extremely resistant to deterioration from acids, antacid, and molten steels, guaranteeing resilience in hostile chemical settings. Nonetheless, AlN is susceptible to hydrolysis when subjected to wetness at elevated temperature levels, which can degrade its surface and reduce thermal efficiency.
To alleviate this issue, protective coverings such as silicon nitride (Si four N ₄), aluminum oxide, or polymer-based encapsulation layers are often put on boost moisture resistance. Additionally, cautious sealing and packaging techniques are implemented throughout tool assembly to maintain the integrity of AlN substrates throughout their life span. As environmental laws become more rigid, the safe nature of AlN also positions it as a preferred alternative to beryllium oxide, which positions health risks during handling and disposal.
Conclusion
Aluminum nitride porcelains stand for a course of advanced materials uniquely suited to resolve the expanding demands for efficient thermal management and electric insulation in high-performance digital and optoelectronic systems. Their exceptional thermal conductivity, chemical security, and compatibility with semiconductor innovations make them one of the most ideal substratum product for a variety of applications– from automotive power modules to deep UV LEDs and high-temperature sensors. As construction technologies continue to advance and economical manufacturing techniques mature, the adoption of AlN substrates is anticipated to increase considerably, driving development in next-generation electronic and photonic devices.
