1. Material Science and Structural Quality
1.1 Crystal Framework and Chemical Stability

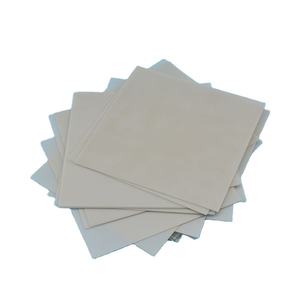

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, made up of alternating layers of light weight aluminum and nitrogen atoms bonded with solid covalent interactions.
This robust atomic plan endows AlN with outstanding thermal stability, preserving architectural honesty up to 2200 ° C in inert environments and standing up to decay under severe thermal cycling.
Unlike alumina (Al ₂ O TWO), AlN is chemically inert to thaw steels and lots of responsive gases, making it ideal for severe settings such as semiconductor processing chambers and high-temperature heating systems.
Its high resistance to oxidation– developing only a thin protective Al two O ₃ layer at surface upon direct exposure to air– makes certain long-term integrity without considerable destruction of bulk buildings.
In addition, AlN displays superb electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric toughness above 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Electronic Characteristics
One of the most specifying feature of aluminum nitride is its superior thermal conductivity, normally ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times greater than that of alumina (≈ 30 W/(m · K)).
This efficiency stems from the reduced atomic mass of nitrogen and light weight aluminum, combined with strong bonding and very little point flaws, which permit reliable phonon transportation via the latticework.
Nonetheless, oxygen impurities are particularly harmful; even trace quantities (above 100 ppm) substitute for nitrogen websites, developing light weight aluminum jobs and scattering phonons, consequently significantly lowering thermal conductivity.
High-purity AlN powders synthesized using carbothermal reduction or direct nitridation are vital to achieve ideal warm dissipation.
In spite of being an electrical insulator, AlN’s piezoelectric and pyroelectric properties make it important in sensors and acoustic wave devices, while its wide bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency electronic systems.
2. Fabrication Processes and Production Difficulties

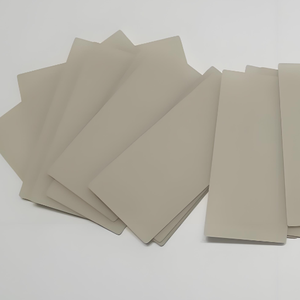

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Producing high-performance AlN substratums begins with the synthesis of ultra-fine, high-purity powder, frequently accomplished with reactions such as Al Two O ₃ + 3C + N TWO → 2AlN + 3CO (carbothermal reduction) or direct nitridation of light weight aluminum metal: 2Al + N ₂ → 2AlN.
The resulting powder should be thoroughly grated and doped with sintering help like Y TWO O THREE, CaO, or unusual earth oxides to promote densification at temperatures between 1700 ° C and 1900 ° C under nitrogen environment.
These additives form transient liquid phases that enhance grain border diffusion, allowing full densification (> 99% academic thickness) while minimizing oxygen contamination.
Post-sintering annealing in carbon-rich environments can additionally decrease oxygen material by getting rid of intergranular oxides, thus bring back peak thermal conductivity.
Attaining uniform microstructure with controlled grain dimension is vital to balance mechanical stamina, thermal efficiency, and manufacturability.
2.2 Substrate Forming and Metallization
Once sintered, AlN ceramics are precision-ground and washed to meet limited dimensional tolerances needed for digital product packaging, commonly to micrometer-level flatness.
Through-hole drilling, laser cutting, and surface area patterning allow integration right into multilayer packages and crossbreed circuits.
A crucial action in substrate construction is metallization– the application of conductive layers (generally tungsten, molybdenum, or copper) through procedures such as thick-film printing, thin-film sputtering, or direct bonding of copper (DBC).
For DBC, copper foils are adhered to AlN surfaces at elevated temperature levels in a regulated ambience, forming a solid user interface appropriate for high-current applications.
Alternative techniques like active steel brazing (AMB) use titanium-containing solders to improve attachment and thermal exhaustion resistance, especially under duplicated power biking.
Proper interfacial engineering guarantees reduced thermal resistance and high mechanical dependability in operating tools.
3. Performance Advantages in Electronic Systems
3.1 Thermal Monitoring in Power Electronics
AlN substrates excel in managing warmth produced by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers utilized in electrical lorries, renewable energy inverters, and telecommunications framework.
Efficient warm extraction prevents local hotspots, minimizes thermal tension, and extends device life time by mitigating electromigration and delamination risks.
Contrasted to standard Al two O three substratums, AlN makes it possible for smaller package dimensions and higher power thickness due to its remarkable thermal conductivity, allowing designers to push efficiency limits without endangering dependability.
In LED lighting and laser diodes, where joint temperature level straight impacts effectiveness and shade stability, AlN substrates substantially improve luminescent result and operational life expectancy.
Its coefficient of thermal expansion (CTE ≈ 4.5 ppm/K) also carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), lessening thermo-mechanical tension throughout thermal cycling.
3.2 Electrical and Mechanical Dependability
Beyond thermal performance, AlN supplies low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) throughout a wide regularity array, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature protects against wetness ingress, getting rid of deterioration threats in damp settings– an essential advantage over natural substratums.
Mechanically, AlN possesses high flexural stamina (300– 400 MPa) and firmness (HV ≈ 1200), ensuring resilience during handling, setting up, and field procedure.
These characteristics jointly contribute to boosted system reliability, decreased failure rates, and reduced total expense of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Protection Equipments
AlN ceramic substratums are currently typical in sophisticated power components for industrial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid vehicles.
In aerospace and protection, they support radar systems, electronic war devices, and satellite interactions, where performance under severe conditions is non-negotiable.
Medical imaging tools, consisting of X-ray generators and MRI systems, additionally benefit from AlN’s radiation resistance and signal stability.
As electrification fads accelerate throughout transportation and energy markets, demand for AlN substrates continues to grow, driven by the need for compact, efficient, and dependable power electronic devices.
4.2 Emerging Integration and Lasting Advancement
Future advancements concentrate on integrating AlN right into three-dimensional packaging styles, ingrained passive parts, and heterogeneous combination platforms incorporating Si, SiC, and GaN tools.
Research right into nanostructured AlN movies and single-crystal substratums aims to further increase thermal conductivity toward academic restrictions (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Efforts to reduce manufacturing prices via scalable powder synthesis, additive production of intricate ceramic frameworks, and recycling of scrap AlN are getting momentum to enhance sustainability.
In addition, modeling devices using finite component analysis (FEA) and machine learning are being utilized to enhance substrate style for specific thermal and electric lots.
In conclusion, aluminum nitride ceramic substrates stand for a keystone modern technology in contemporary electronic devices, uniquely bridging the space in between electric insulation and remarkable thermal transmission.
Their role in making it possible for high-efficiency, high-reliability power systems highlights their critical relevance in the ongoing advancement of digital and energy technologies.
