1. The Scientific research and Framework of Alumina Porcelain Materials
1.1 Crystallography and Compositional Variations of Aluminum Oxide

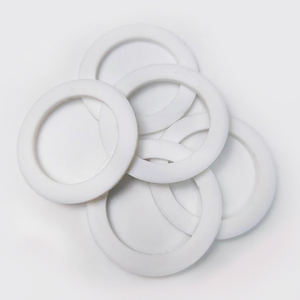

(Alumina Ceramics Rings)
Alumina ceramic rings are manufactured from aluminum oxide (Al ₂ O FOUR), a substance renowned for its outstanding equilibrium of mechanical stamina, thermal stability, and electric insulation.
One of the most thermodynamically secure and industrially pertinent phase of alumina is the alpha (α) phase, which crystallizes in a hexagonal close-packed (HCP) structure coming from the diamond family members.
In this setup, oxygen ions develop a thick latticework with light weight aluminum ions inhabiting two-thirds of the octahedral interstitial websites, resulting in a very secure and durable atomic structure.
While pure alumina is theoretically 100% Al Two O SIX, industrial-grade materials usually include small portions of ingredients such as silica (SiO TWO), magnesia (MgO), or yttria (Y ₂ O FIVE) to regulate grain development throughout sintering and boost densification.
Alumina ceramics are classified by pureness degrees: 96%, 99%, and 99.8% Al ₂ O six prevail, with higher purity correlating to boosted mechanical homes, thermal conductivity, and chemical resistance.
The microstructure– especially grain size, porosity, and stage distribution– plays a crucial duty in determining the last efficiency of alumina rings in service atmospheres.
1.2 Secret Physical and Mechanical Properties
Alumina ceramic rings show a suite of residential or commercial properties that make them essential popular commercial setups.
They possess high compressive stamina (approximately 3000 MPa), flexural strength (typically 350– 500 MPa), and exceptional firmness (1500– 2000 HV), making it possible for resistance to use, abrasion, and deformation under lots.
Their reduced coefficient of thermal growth (approximately 7– 8 × 10 ⁻⁶/ K) guarantees dimensional security throughout wide temperature level ranges, decreasing thermal stress and splitting throughout thermal cycling.
Thermal conductivity ranges from 20 to 30 W/m · K, depending on purity, enabling modest heat dissipation– sufficient for several high-temperature applications without the demand for active cooling.

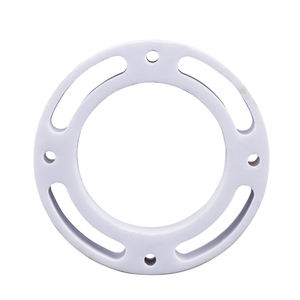

( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a quantity resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric stamina of around 10– 15 kV/mm, making it suitable for high-voltage insulation parts.
In addition, alumina demonstrates superb resistance to chemical assault from acids, antacid, and molten metals, although it is prone to attack by solid antacid and hydrofluoric acid at raised temperatures.
2. Manufacturing and Accuracy Design of Alumina Bands
2.1 Powder Processing and Forming Methods
The production of high-performance alumina ceramic rings begins with the selection and prep work of high-purity alumina powder.
Powders are typically synthesized using calcination of light weight aluminum hydroxide or through progressed methods like sol-gel processing to accomplish great bit size and slim size circulation.
To create the ring geometry, a number of shaping methods are used, including:
Uniaxial pushing: where powder is compacted in a die under high pressure to develop a “eco-friendly” ring.
Isostatic pushing: using uniform pressure from all instructions making use of a fluid tool, causing greater thickness and even more consistent microstructure, particularly for facility or huge rings.
Extrusion: appropriate for lengthy cylindrical types that are later cut into rings, frequently made use of for lower-precision applications.
Shot molding: made use of for intricate geometries and tight resistances, where alumina powder is blended with a polymer binder and infused right into a mold and mildew.
Each technique affects the last density, grain positioning, and issue circulation, requiring careful process selection based on application requirements.
2.2 Sintering and Microstructural Advancement
After forming, the green rings undergo high-temperature sintering, typically between 1500 ° C and 1700 ° C in air or controlled ambiences.
During sintering, diffusion mechanisms drive particle coalescence, pore elimination, and grain growth, leading to a completely dense ceramic body.
The rate of heating, holding time, and cooling down profile are specifically controlled to prevent breaking, warping, or overstated grain development.
Ingredients such as MgO are often introduced to prevent grain limit wheelchair, leading to a fine-grained microstructure that enhances mechanical strength and reliability.
Post-sintering, alumina rings may go through grinding and splashing to attain tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), essential for securing, bearing, and electrical insulation applications.
3. Useful Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are commonly used in mechanical systems as a result of their wear resistance and dimensional stability.
Secret applications consist of:
Sealing rings in pumps and valves, where they withstand disintegration from unpleasant slurries and harsh fluids in chemical handling and oil & gas industries.
Bearing elements in high-speed or corrosive settings where metal bearings would certainly break down or require frequent lubrication.
Guide rings and bushings in automation tools, using reduced friction and lengthy service life without the requirement for greasing.
Put on rings in compressors and generators, reducing clearance between turning and stationary parts under high-pressure problems.
Their ability to keep efficiency in dry or chemically hostile atmospheres makes them above lots of metallic and polymer choices.
3.2 Thermal and Electrical Insulation Duties
In high-temperature and high-voltage systems, alumina rings work as essential insulating parts.
They are employed as:
Insulators in heating elements and heating system components, where they support resisting cables while withstanding temperature levels above 1400 ° C.
Feedthrough insulators in vacuum and plasma systems, stopping electrical arcing while maintaining hermetic seals.
Spacers and support rings in power electronics and switchgear, isolating conductive components in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave gadgets, where their low dielectric loss and high break down stamina ensure signal stability.
The combination of high dielectric strength and thermal stability enables alumina rings to function dependably in atmospheres where organic insulators would certainly deteriorate.
4. Product Innovations and Future Outlook
4.1 Compound and Doped Alumina Systems
To further boost performance, researchers and producers are establishing innovative alumina-based compounds.
Instances include:
Alumina-zirconia (Al ₂ O SIX-ZrO TWO) compounds, which exhibit improved fracture durability with improvement toughening mechanisms.
Alumina-silicon carbide (Al two O TWO-SiC) nanocomposites, where nano-sized SiC bits boost solidity, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain boundary chemistry to improve high-temperature strength and oxidation resistance.
These hybrid materials prolong the operational envelope of alumina rings right into more extreme conditions, such as high-stress vibrant loading or quick thermal biking.
4.2 Arising Patterns and Technological Combination
The future of alumina ceramic rings lies in smart integration and accuracy manufacturing.
Fads consist of:
Additive manufacturing (3D printing) of alumina elements, allowing intricate inner geometries and personalized ring layouts formerly unachievable with standard methods.
Functional grading, where composition or microstructure differs across the ring to maximize efficiency in various areas (e.g., wear-resistant external layer with thermally conductive core).
In-situ monitoring via embedded sensors in ceramic rings for anticipating upkeep in commercial machinery.
Boosted use in renewable energy systems, such as high-temperature gas cells and focused solar power plants, where material integrity under thermal and chemical tension is critical.
As markets require greater efficiency, longer life expectancies, and minimized maintenance, alumina ceramic rings will continue to play an essential role in allowing next-generation engineering solutions.
